Tiny URL Shortner Service

This is a full phased URL shortening service that allows users to create shortened URLs that redirect to longer URLs.

It supports the following features

• Custom Aliasing

• Links Expiry

• Hitcount Monitor

• Auto Cache and eviction of redirects

• Analytics (TBD)

Supported in-built in-memory Bloom filter to search for custom alias if users want to name their links for easy memorizing.

Tech Stack

• Golang
• Net/Http
• Postgres
• knadh/Goyesql/v2
• Bloom filter
• Redis

There are no additional bloated component has been added, to bulkify the service. Focused on core business idea.

Golang in-built net/http server has been used from scratch. Core Middlewares supported to log requests to maintain audit trails and service logs.

Extreamly powerful simple, and efficient, can handle loads at scale.

Acknowledgements

• Bloom Filter Implementation - Sounish Nath
• Design URL Shortner service - Algomaster

API Reference

Create an account

  POST /signup

Login into your account

  POST /login

Generate shorten url - v1

  POST /api/v1/shorten

Note: This endpoint is the scratch endpoint which uses following -

• MD5 Hashing
• 256 bytes long it later be considered 6 bytes string to encode.
• Base62 Encoding

As per the design systems, at scale system will see huge hash collision, which will be bad and in-efficient. However in indeal case - it can generate the trillion shorten urls. 2^67-1.

Characters A-Za-z0-9 will be considered for the base62 encoding.

Generate shorten url - v2

  POST /api/v2/shorten

Note: This API endpoint works by generating the Atomic ID generator. I am not using Redis to generate IDs. Rather I am using Unlogged table. which means turning off Write Ahead Logs (WAL) making postgres faster.

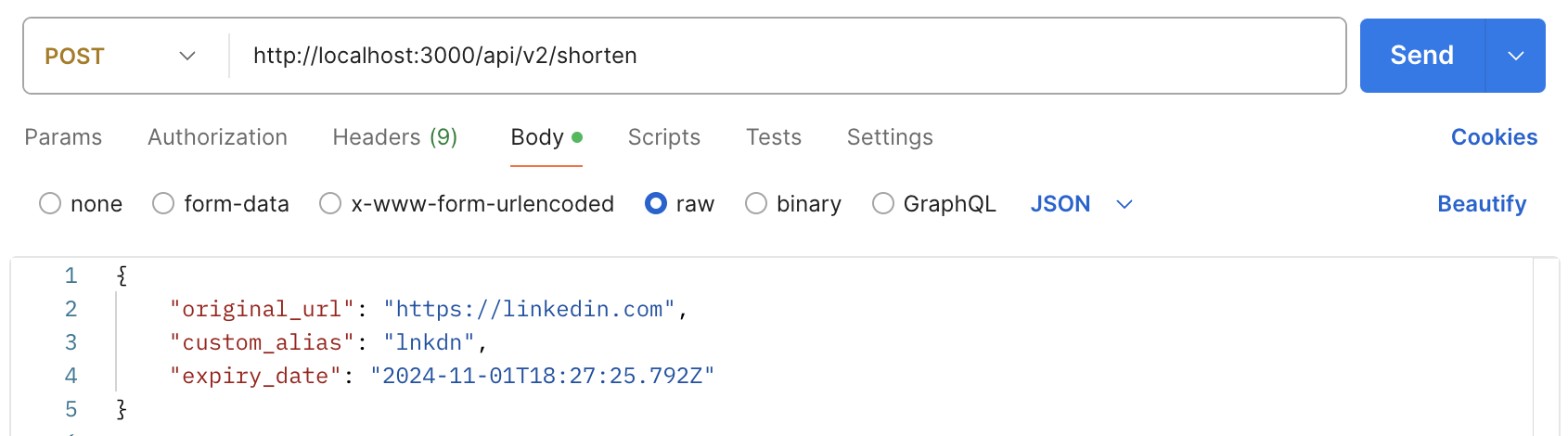

Sample Input Response:

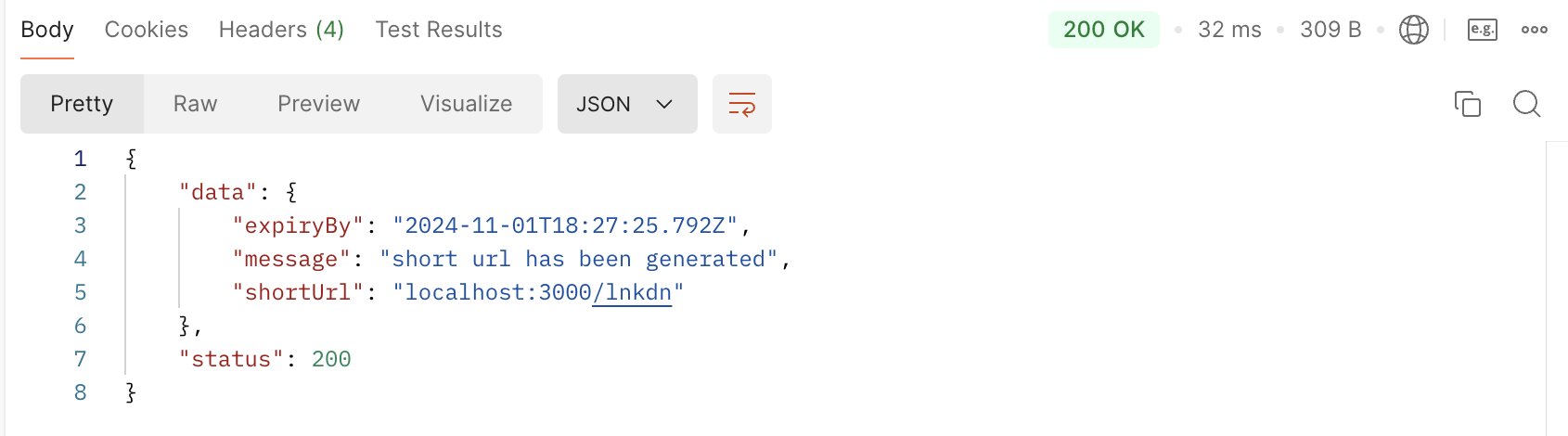

Sample Output Response:

NOTE: Using the postgres nextval(sequence) generator.

Check Custom Alias Available

  POST /api/check-alias/{customAlias}

Note: To check the alias availability, I have implemented the Bloom Filter - a probabilistic data structure which helps to check about any string existence at scale.

How does Bloom filter work?

Bloom filters consist of three components:

• bit field
• hash function (or multiple hash functions)
• number of hashing rounds to be performed

This is probabilistic data structure which attempts to answer queries about element’s membership in a certain set. Bloom filters have two operations:

type BloomFilter struct {
    Store    []bool            // to Store Bitset
    Size     int32             // Size of the filters
    mHashers []murmur3.Hash128 // HashFunctions to improve the probabilistic accuracy

    mu sync.Mutex
}

- func (bf *BloomFilter) Add(key stirng) error {...}
- func (bf *BloomFilter) Exists(key stirng) (bool, error) {...}

Redirection to shorturl

  POST /{shortUrl}

Note: If the short url does not exists it throws 404-Not Found Http error.

{
    "data": null,
    "status": 404,
    "error": "No url found for the given shorten url"
}

Appendix

The additional feature and tech stack are choseen carefully, to run millions of urls redirection easily.

• Load Balancer: Distributes incoming requests across multiple application servers.

• Application Servers: Handles incoming requests for shortening URLs and redirecting users.

• URL Generation Service: Generates short URLs, handles custom aliases, and manages link expirations.

• Redirection Service: Redirects the users to the original URL.

• Database: Stores mappings between short URLs and long URLs.

• Cache: Stores frequently accessed URL mappings for faster retrieval.

• Analytics Service (optional): Tracks usage statistics like the number of clicks, geographic location, etc.

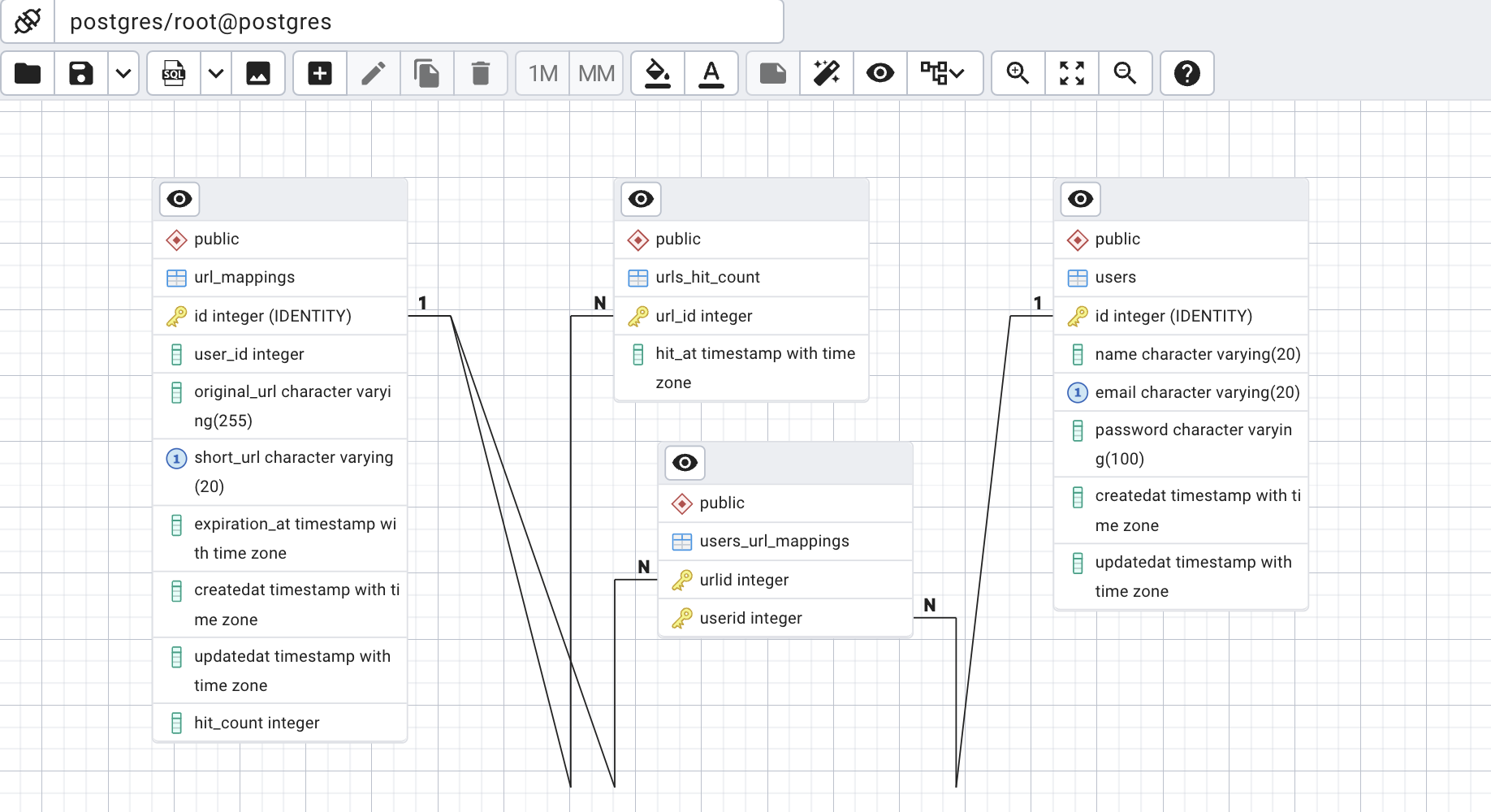

Database ERD Diagram:

URL Generator Service

The primary function of the service is to generate a short, unique URL for each long URL provided by the user.

• Hashing + Base62 Encode
• Atomic Incremental ID Generator + Base62 Encode
• Inmemory (Redis/Memcache) ID Generator + Base62 Encode

Demo

Insert gif or link to demo

Environment Variables

To run this project, you will need to add the following environment variables to your go runtime.

• PORT - on which the backend service will run
• JWT_SECRET - secret for your JWT
• DB_DRIVER - postgres DB driver
• DSN - postgres DB connection string
• REDIS_CLIENT_ADDR - redis client address (host:port)

Deployment

To install dependencies

      go mod tidy
    go mod download -x
    go mod verify

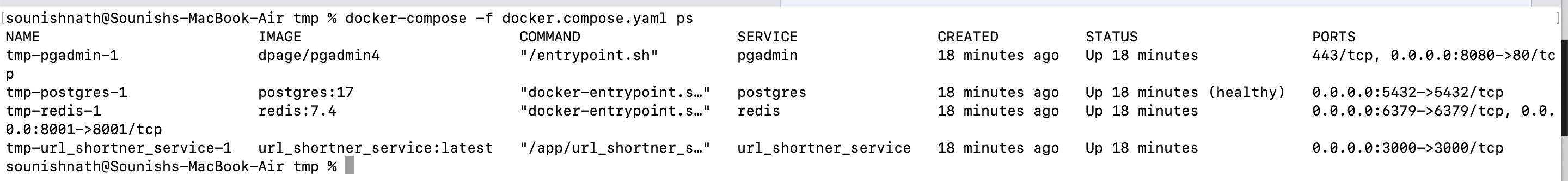

To enable the postgres DB and redis

    docker-compose -f docker.compose.yaml down
    docker-compose -f docker.compose.yaml up --build

To run the goserver locally

    export AppName=url_shortner_service
    go build -ldflags "-s -w" -o bin/$AppName cmd/*.go

    ./bin/$(AppName)

To build the docker images

    docker images
    docker rmi -f $AppName
    docker build -t $AppName -f Dockerfile .

    docker run -ti $AppName

Authors

• @sounishnath003

Badges

Add badges from somewhere like: shields.io

Contributing

Contributions are always welcome!

You are most welcome for any contribution to the project.
